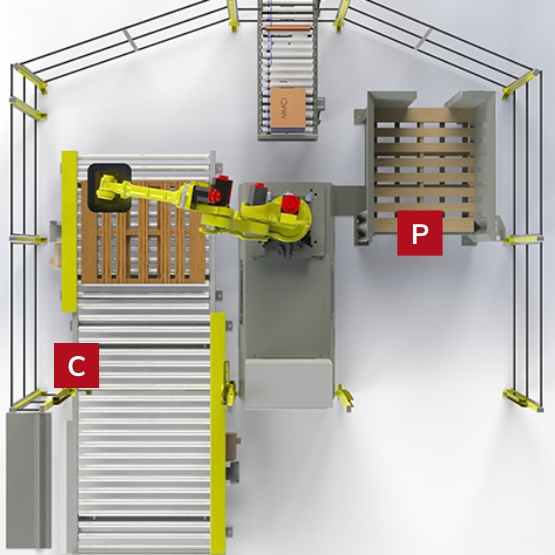

QSP-100CP Robotic Palletizer

QSP-100CP Robotic Palletizer

Single Position - Build On Conveyor + Pallet Hopper

The QSP-100CP is a single position robotic palletizer featuring all of our industry leading technology along with the following enhanced automation.

  • C= Automated Outfeed Pallet Conveyor
  • P = Automated Pallet Picking by Robot
QSP-100CP Specifications
Application
  • One production line running one SKU at a time
  • Sealed cases, trays and bliss boxes that can be top picked with either vacuum or clamp EOAT (End-of-Arm Tool)
Footprint
  • 17'9" x 15'11"
Base & Control Cabinet
Operator Interface
Safety
Continuous Operation
  • Yes
Case Size Range
  • Length 9" – 29" | Width 5" – 21" | Height 3" – 24"
Max. Case Weight
  • Up to 50 lbs
Max. Case Rate
  • Up to 30 CPM
Max. Pallet Height
  • Up to 90" including pallet
Case Infeed & Positioning Conveyor
  • TGW IntelliROL motorized roller conveyor with reference pusher
Robot Options
  • FANUC M20iD/25 | FANUC M710iC/50H | FANUC M410iC/110 | FANUC M410iB/140H | FANUC M410iC/185
End-of-Arm Tooling
  • Vacuum Gripper or Clamp Tool for single case handling
Pallet Conveyor
  • Yes
Sheet Handling
  • N/A
Pallet Handling
  • Conveyor
Floor Jack Pallet Exchange
  • No
Forklift Pallet Exchange
  • No
Support Structure & Design
  • Preassembled with QSP Point-Lock design for simplified installation
Price
  • Competitively priced and part of the QSP Smart Buy lease program

Enhanced Automation

The QSP-100CP inlcudes the following automation enhancements.

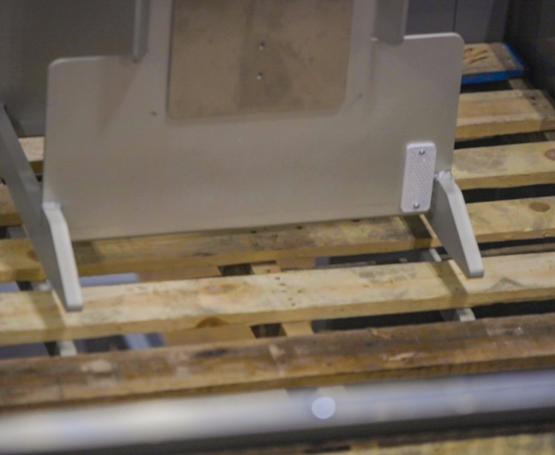

Automated Pallet Picking

Automated Pallet Picking

By outfitting the end-of-arm tooling with fork extensions and adding a pallet hopper to the cell, the QSP-100CPS brings an added level of automation to the production floor.

The pallet hopper is integrated into the cell's design using our QSP Point-Lock technology that simplifies installation and ongoing operation while making the entire system more portable.

Learn More

Outfeed Pallet Conveying

Outfeed Pallet Conveying

This model features an automated pallet conveyor designed for performance, safety and durability.

It is outfitted with forklift proximity sensors, reinforced chain guards, fixed end-stop fork guides and protective wheel stops that eliminate downtime and extend the life of conveyor.

Learn More

Other QSP Models

QSP-100

  • Single Position - Build on Floor
  • Manual Pallet Placement/Removal

Learn More

QSP-100S

  • Single Position - Build on Floor
  • Sheet Hopper

Learn More

QSP-100CPS

  • Single Position - Build on Conveyor
  • Pallet Hopper
  • Sheet Hopper

Learn More

QSP-200

  • Dual Position - Build on Floor
  • Manual Pallet Placement/Removal

Learn More

QSP-200S

  • Dual Position - Build on Floor
  • Sheet Hopper

Learn More

Smart Buy = Immediate Cost Savings

With our Smart Buy leasing options, we can typically start generating cost savings for our customers immediately.

Traditional Labor CostAverage Salary + Benefits $3,175/month QSP Smart BuyLease Starting at $2,675/month
One 8 hour shift5 days a week Monthly Savings$500
Two 8 hour shifts5 days a week Monthly Savings$3,675

Reduce Labor Costs & More

Learn more about how manual labor compares with “robotic labor.” Download this white paper to see how robotic palletizing compares with manual palletizing on 5 key variables.

Download Chart PDF

How Can We Help?

At any stage of your automation project, we can help. Call us at 314-438-3300 or fill out the form below.
