Omron MD Series AMRs
An easy to use, efficient and safe solution for mid-range automated material movement processes across a wide variety of industries and applications. Omron’s MD Series are state of the art autonomous mobile robots (AMRs) that are ideally suited to address material movement and other mid-size transport processes.
With a top speed of 2.2 m/sec (MD-650), max payloads of 650 and 900kg, a 10-hour runtime, ultra fast charging, an innovative dynamic safety system with automatic footprint switching, along with Omron’s industry leading on-board navigation system, the MD Series of AMRs can deliver the performance and efficiency needed to meet even the most demanding applications. Additionally, with easy to access user connections, a rock-solid all metal chassis, industrial grade design and maintenance centric layout, MD Series users can have the peace of mind that their mobile robot will provide them with a long service life.

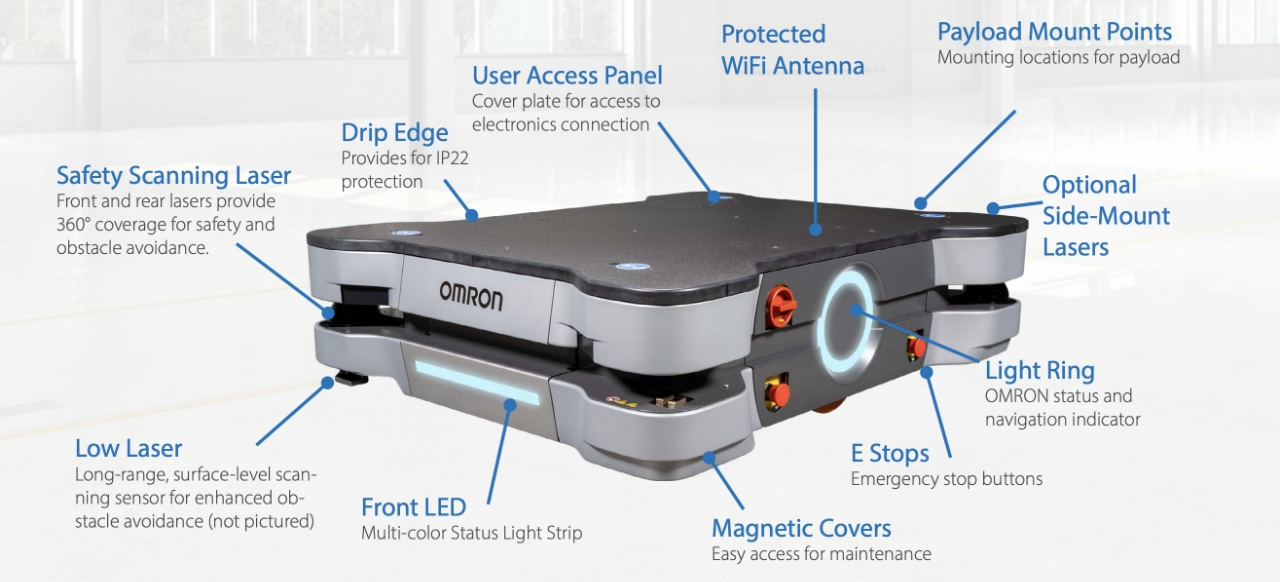

Feature Packed by Design
Omron’s MD Series are state of the art autonomous mobile robots (AMRs) that provide the performance and utility needed for safe and efficient material transport applications. Whether you need to move pallets, transport raw materials to production lines, shuttle in process goods between stations, or any other application that requires mobility, the MD Series is ready and able to tackle even the most demanding mid-size payload tasks.
- Rugged industrial grade design available in 650kg and 900kg max payloads
- Industry leading top speed of 2.2 m/sec (MD-650)
- Easy setup and integration with user production management systems
- 360° of safety rated sensing
- Fully autonomous navigation
- Forward and reverse navigation capable
- Built in PLC and Safety PLC
- 128 Dynamic safety zones with automatic footprint switching
- Capable of user defined AGV mode (Selectable Autonomy)
- Dynamic obstacle avoidance
- Full support for add-on options such as CAPS, Acuity sensing, HAPS and side lasers
- Automatic charging, including opportunity charging
- Performs well even in more dusty environments
- Up to 10hrs of operation per charge
- Ultra-fast 20min charge time (20% to 80%)
- Fleet capable with seamless operation with all Omron AMR models on the same fleet
- Easily accessible user DC power, communication and I/O connections
- Maintenance centric design allows nearly all maintenance or repairs to be made without topper removal
Safe and Efficient
Historically, for an AMR to operate safely in an environment, the robot would be setup in a worst-case scenario configuration where safety zones would be locked in as if the robot was being driven at maximum speed and the largest physical payload size was always present. While this ensured safe operation, it came at the cost of operational efficiency (and in some cases) prohibited applications with tight access points.
With the MD Series, the trade off between safe operation and efficiency is a thing of the past. Not only do MD Series AMRs provide 360° of safety rated sensing to ensure maximum coverage in all directions, its advanced onboard safety and navigation systems work together to assess the robot’s speed, trajectory and payload size to dynamically select from 128 safety zones in real time so that the most appropriate zone is active. To take it a step further, the MD can also be configured to automatically adjust its physical footprint in applications where overhung payloads are picked up and dropped off (an industry first). The result of all this high-tech wizardry is that MD-Series AMRs can travel faster and use more efficient paths while still maintaining safe operation, which equates to increased productivity and a faster ROI.
Key Benefits
Provides the ability to address applications that have greater varying payload sizes with the same AMR
Improves productivity by using the “best suited” safety zones for speed and payload conditions to navigate faster and more efficiently
Provides an overall superior safety solution with the ability to customize zones to best fit the unique needs of different applications
